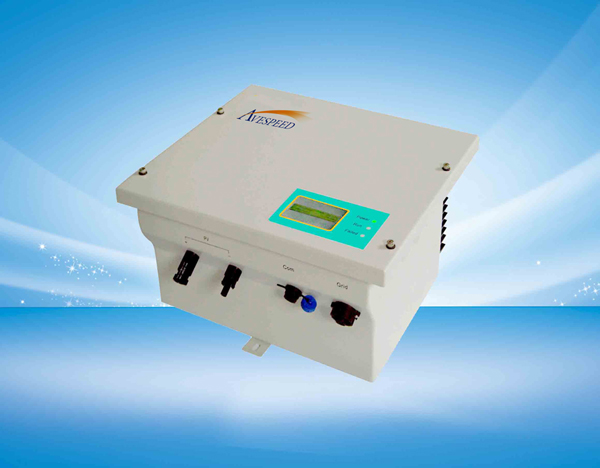

2KW PV Grid-tied Inverters(with TUV certificate)(点击看大图)

Product Name2KW PV Grid-tied Inverters(with TUV certificate)
Product Category Solar Panel Systems
Product Description】:

2KW PV Grid-tied Inverters(with TUV certificate)
Modle:ASV2K
Rated Power(kW):2
Output parameter
The proposed PV module power (W)):2500
Max DC input power (W):2350
MaxDC Input Voltage (Vdc):400
Voltage (Vdc):280
MinDC input voltage (Vdc):150
input voltage range input voltage range: 150-400
MPPT voltage range(Vdc):150-350
MaxDC input
Current (Adc):6+6
Max DC voltage harmonic (Vpp)<10%
Input Connection plug
Input connector number (group):2
MPPT number of channels:2
Input Transient Voltage Suppressor:Yes
Ground Protection: Yes
Reverse polarity protection: Yes
Input current limit: Yes
Input Current Reverse Isolation: Yes
Export parameter
Max AC Output Power (VA):2200
Rated AC Output Power (VA):2000
Power Factor >0.99
Output current waveform distortion rate :<4%
Power rated voltage(Vrms): 220/230/240 50Hz
120/240        60Hz
Power voltage range (Vrms) According the vocal standard,grid voltage of a floating 88%-110%
Ratedout output  current(Arms):8.7
Max output current(Arms):10.0
Rated power frequency (Hz):50
Grid grequency fluctuation range (Hz): 50/60±0.5Hz Applicable to local standards
Isolationg transformer:Yes
Grid connention Waterproof DIP terminal
Power disconnectDelay
Output short-circuit protection: Yes ,current conteol
Output transient voltage: Yes
Island protection; Yes,according to UL 1741/IEEE 1547/VDE0126-1-1/DK5940/AS4777
EMC protection: EN61000-6-1:2007/EN61000-6-3:2007/EN61000-6-2:2005/EN61000-6-4:2007/EN61000-3-2:2006/EN61000-3-3:1995/+A1:2001/+A2:2005
Efficiency
Max efficiency:>94.0
Eurpean efficiency:>92.5
Packaging
ShellIP65,indoor and outdoor installation
Weight(Kg):36.5
366x525x225
circumstance
Operating Temp (0C) : -25~ +50
Storage ambient temp :(0C) -40~ +70
Elevation limit (m): 4000(tiptop temp +300C)
