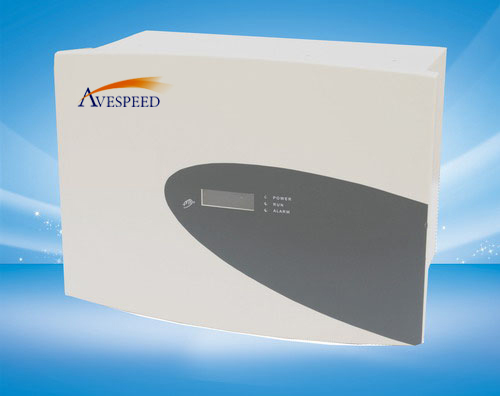

1.5KW PV Grid-tied Inverters(with TUV certificate)
Product Features:
Using advanced (IGBT) from Mitsubishi, the system efficiency is enhanced.
High conversion efficiency
Advanced technology for Maximum Power Point Tracking (MPPT)>99%MPPT efficiency
Wide input voltage range
Efficiency design of low-frequency isolation transformer
High efficiency at wide power range
Advanced Anti-island technology
High reliability due to complete function
MPPT and CTV running modes
Multilingual LCD settings and different communication interfaces
Adjustable protection and operation parameters
Easy operation, installation and maintenance
Technical Parameters:
|
Model |
ASV1K5 |
|
DC Input |
|
|
Max. DC Voltage |
450Vdc |
|
MPP Voltage Range |
150-380Vdc |
|
Max. DC Power |
1800Wp |
|
Max. Input Current |
10A |
|
AC Output |
|
|
Output power |
1500W |
|
Current THD |
<3%(≥50%rated power） |
|
Nominal Grid Voltage |
180-260Vac |
|
Nominal Grid Frequncy |
50/60Hz |
|
Power Factor |
.≥0.99（≥50%rated power） |
|
System |
|
|
Max. Efficiency |
95% |
|
Euro Efficiency |
93% |
|
Protection Degree |
IP41 (indoor) |
|
Operating Temp. |
-20~+40℃ |
|
Cooling Humidity |
natural cooling |
|
Relative Humidity |
15%~95%, non-condensing |
|
Comm. Interfaces |
RS485/RS232 |
|
Display |
LCD |
|
Mechanical Data |
|
|
W | H | D |
304/161|307(mm) |
|
Weight |
10.3kg |
