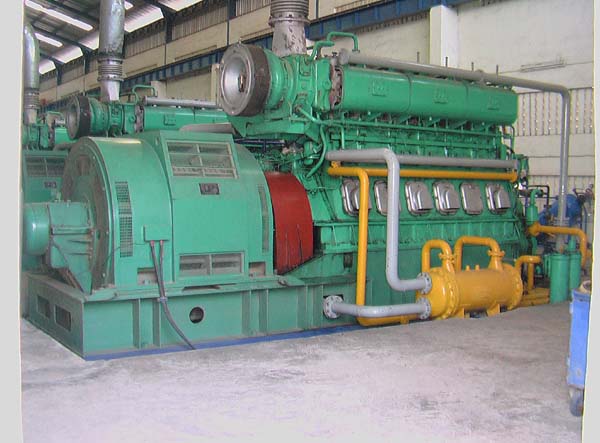

Ⅰ. Gen-set technical specification |
No. |
Item |
Unit |
Specification |
1 |
Model |
|
2000GF |
2 |
Rated power |
kW |
2000 |
3 |
Rated rev. |
rpm |
600 |
4 |
Rated voltage |
V |
11000 |
5 |
Rated current |
A |
131.2 |
6 |
Frequency |
Hz |
50Hz |
7 |
Power factor |
|
0.8 (lagging) |
8 |
Phase |
|
3-phase |
9 |
Voltage fluctuation rate |
% |
±1 |
10 |
Frequency (rev.) fluctuation rate |
% |
±0.5 |
11 |
Stable voltage regulating rate |
% |
±2.5 |
12 |
Stable frequency (rev.) regulating rate |
% |
5 |
13 |
Transient voltage regulating rate |
% |
±20~-15 |
14 |
Stabilizing time |
s |
5 |
15 |
Voltage regulating method |
|
Auto |
16 |
Speed Governor |
|
Electronic or machnical |
17 |
Frequency regulating method |
|
Auto/Manual |
18 |
Lubricating method |
|
Pressure lubricating |
19 |
Cooling method |
|
Close circuit of fresh cooling water |
20 |
Coupling |
|
Flexiable |
21 |
Painting color |
|
Blue |
22 |
Overall dimension |
mm |
8560×2670×3350 |
23 |
Net weight |
kg |
45000 |
Ⅱ. Diesel engine specification |
No. |
Item |
Unit |
Specification |
1 |
Engine Model |
|
GN8320ZD |
2 |
Type |
|
In-line, 8-Cyls, four-stroke, direct injection, charged, inter cooled |
3 |
Bore |
mm |
320 |
4 |
Stroke |
mm |
380 |
5 |
Total displacement |
L |
161 |
6 |
Mean piston speed |
m/s |
6.33 |
7 |
Rated power |
KW |
2206 |
8 |
Rated rev. |
rpm |
600 |
9 |
Overload (1 hr per 12 hrs) |
kW/rpm |
2426.6/600 |
10 |
Mean effective pressure |
MPa |
1.81 |
11 |
Compression ratio |
|
13 |
12 |
Rotation direction |
|
clockwise, viewed from flywheel end. |
13 |
Firing order |
|
1-5-7-3-8-4-2-6 |
14 |
Specific fuel oil consumption |
g/kW.h |
198+3% |
15 |
Specific Lube oil consumption |
g/kW.h |
< 1.2g/kW.h |
16 |
Smoke |
RB |
≤0.8 |
17 |
Noise |
dB(A) |
105 |
18 |
Starting method |
|
Compressed air |
19 |
Cooling system |
|
Fresh water cooling |
20 |
Lubricating system |
|
Pressure lubricating |
21 |
Fuel oil specification |
|
Diesel oil and 380Cst/50℃ HFO |
22 |
Lube oil specification |
|
CD40 |
23 |
Piston lifting height |
mm |
2600 |
24 |
Overall dimension |
mm |
6164×1835×2916 |
25 |
Net weight |
kg |
31000 |
Ⅲ. Alternator specification |
No. |
Item |
Unit |
Specification |
1 |
Alternator Model |
|
TFW2000 |
2 |
Type |
|
Brushless generator |
3 |
Rated power |
kW |
2000 |
4 |
Rated voltage |
V |
11000 |
5 |
Rated current |
A |
131.2 |
6 |
Frequency |
Hz |
50 |
7 |
Power factor |
|
0.8 (lagging) |
8 |
Working condition |
|
Continuous |
9 |
Phase and connection |
|
3-phase |
10 |
Voltage regulation method |
|
Brushless, self excited |
11 |
Insulation Class |
|
F |
12 |
Protection Class |
|
IP23 |
Ⅳ Cooling tower specification |
No. |
Item |
Unit |
Specification |
1 |
Cooling tower model |
|
GBL-100 |
2 |
Inlet temperature |
℃ |
60 |
3 |
Outlet |
℃ |
35 |
4 |
Base Plane Size |
mm |
Ф3780×4040 |
5 |
Blade amount |
|
4 |
6 |
Fan diameter |
mm |
Ф2000 |
7 |
Motor fan power |
kW |
5.5 |
8 |
Inlet pipe demension |
mm |
DN150 |
9 |
Outlet pipe demension |
mm |
DN200 |
Ⅴ HFO purified separator |
No. |
Item |
Unit |
Specification |
1 |
Separator model |
|
B1217Z |
2 |
Rated treating capacity (diesel) |
L/h |
5500 |
3 |
Operating for 180Cst/50℃ HFO |
L/h |
3000 |
4 |
Operating for 380Cst/50℃ HFO |
L/h |
2400 |
5 |
Separating temperature |
℃ |
98 |
6 |
Motor power |
kW |
11 |
7 |
Purified oil outlet pressure |
MPa |
0.2 |
8 |
Weight |
kg |
2000 |
9 |
Demension |
mm |
1450*1200*1600 |
Ⅵ HFO Booster |
No. |
Item |
Unit |
Specification |
1 |
Modle |
|
|
2 |
Rated supply capacity |
L/h |
3300 |
3 |
Viscosity control range |
Cst |
10~15 |
4 |
Heating power |
kW |
20 |
5 |
HFO inlet temperaure |
℃ |
95~100 |
6 |
HFO outlet temperaure |
℃ |
110~125 |
7 |
Heating medium : |
|
Steam 170℃ |
8 |
Fuel supply pressure range . |
Mpa |
adjustable 0.2 – 1.0 |
9 |
Mixing tank |
L |
80 |
10 |
Motor Power |
kW |
0.75+1.5 |
11 |
Heat insulation material |
|
wool |
12 |
Fine filter type |
|
363 Mesh / inch2 |
Ⅶ Eexhaust gas boiler |
No. |
Item |
Unit |
Specification |
1 |
Modle |
|
LFDL80-0.7 |
2 |
Rated exhaust gas capacity |
㎏/h |
15286 |
3 |
Evaporative capacity: |
kg/h |
800 |
4 |
Working pressure |
MPa |
0.7 |
5 |
Rated steam temperature |
℃ |
170 |
6 |
Inlet temperature |
℃ |
350 |
7 |
Heating surface |
m2 |
80 |
8 |
Back pressure |
mmH2O |
200 |
9 |
Wet weight of the boiler |
kg |
6420 |
10 |
Demension |
mm |
2040×1700×3765 |
